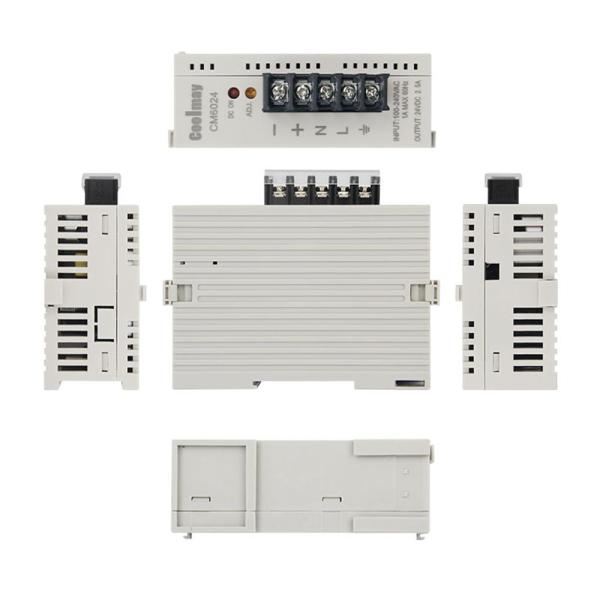

Plastic Housing 2.5A 24vdc Power Supply Din Rail Mount For PLC Controller
DC24V 2.5A PLC Power Supply Module Plastic housing Rail mounting Compact size Hiccup protection mode
COOLMAY CM6024 / CX2024 / CX6024-12-5 din rail type industrial power supply and CM15024 industrial power supply Al l adopt imported power supply dedicated driver chip, high precision high temperature resistant electronic components and international advanced PWM pulse width modulation technology, with short circuit, overload, over voltage, overheating and other protection functions.
The power module series has the following features:
1. Advanced PWM pulse width modulation technology.
2. Imported switching power s upply dedicated driver chip.
3. Soft start current, effectively reducing transient voltage surges.
4. High temperature electrolytic capacitors are used to ensure system reliability.
5. 120% full load aging test with strong output.
6. Built-in EMI and filter. Ripple and noise are minimal.
7. Short circuit protection, overload protection, over voltage protection and other functions.
8. Natural heat dissipation, stable performance and high reliability.
9. Average trouble-free working time up to 100,000 hours.
| Model | CX6024-12-5 | CX2024 | CM6024 | CM15024 |
| Installation | Standard guide rail installation and can be installed on NS35/7.5 or NS35 guide slot | Screw fixation, vertically or  paralleled installation
|
| Dimension | 85*90*36mm | 65*90*36mm | 90*60*32mm | 159*97*38mm |
| Connection mode | 7.62 barrier terminal | 5P-7.62 barrier terminal | 7P-9.5 barrier terminal |
| Input voltage | 88～264VAC or 125~373VDC |
| Input frequency | 47～63HZ |
| Output voltage | DC24V/ DC12V/ DC5V | DC24V |
| Output current | 1A | 0.8A | 2.5A | 6.5A |
| Impulse current | 30A/ 230VAC | 60A/ 230VAC |
| Output accuracy | ±1% |
| Output efficiency | 86% | 85% | 86% | 89% |
| No-load consumption | ＜0.5W |
| Defensive function | Short circuit/ over voltage/ overload protection |
| Manuals | Coolmay power supply user manual |
